- CPU: 32-bit ARM-Cortex-M4 CPU, 120MHz( Max)
- RAM: 128 K Bytes SRAM
- ROM: 512 K Bytes Flash ROM
- Ethernet
- Port Type RJ-45 Stik
- Hastighed 10 /100 Mbps (Automatisk registrering)
- Mode Modbus TCP Client/Server
- Setup HTTP Browser Setup Security Setup Password Protection Built-in 1.5KV Magnetic Isolation
- Protocol:
- ModbusTCP till Modbus-RTU/ASII Slav
- Modbus RTU/ASCII till ModbusTCP slav
- Seriel port * 2 porte:
- Hastighed 300 bps~115,2 K bps
- Paritet Ingen , Ulige , Lige , Mærke , Mellemrum
- Databit 5 , 6 , 7 , 8
- Stop Bit 1, 2
- Port-1:
- RS-232 Pins: Rx, Tx, GND, RTS, CTS, DTR, DSR, DCD
- Port-2:
- RS-422 Rx+ , Rx- , Tx+ , Tx- (Surge Protect) RS-485 Data+ , Data- (Surge Protect)Built –in RS-422/RS-485 pull high Resistor15KV ESD for all signals
- Vagthundsfunktion
- Strøm: DC 9 –24 V , 500mA , DC-stik
- LED-lampe: SYS (PWR), Port 1/2, DI/DO
- Environment: Operating Temperature: 0°C-70°C Storage Temperature : -10°C-80°C
- Dimensioner: 115 * 90 * 27 mm ( B * D * H )
- Vægt: 140 g

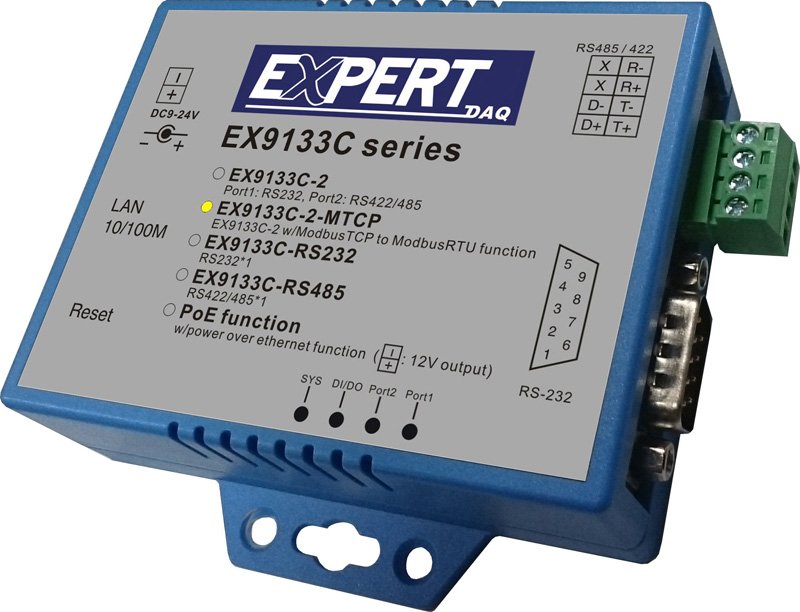

2-port RS232/RS485 til Ethernet Modbus gateway
2-port RS232/RS485 til Ethernet Modbus gateway
